Scroll down to view and select your frame type configurations.

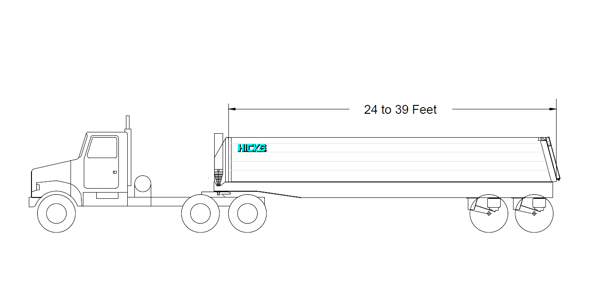

The Hicks Frame Type comes in the following lengths:



24 ft    26 ft    27 ft    28 ft    30 ft    31 ft    32 ft

34 ft    35 ft    37 ft    38 ft    39 ft    40 ft

41 ft    43 ft

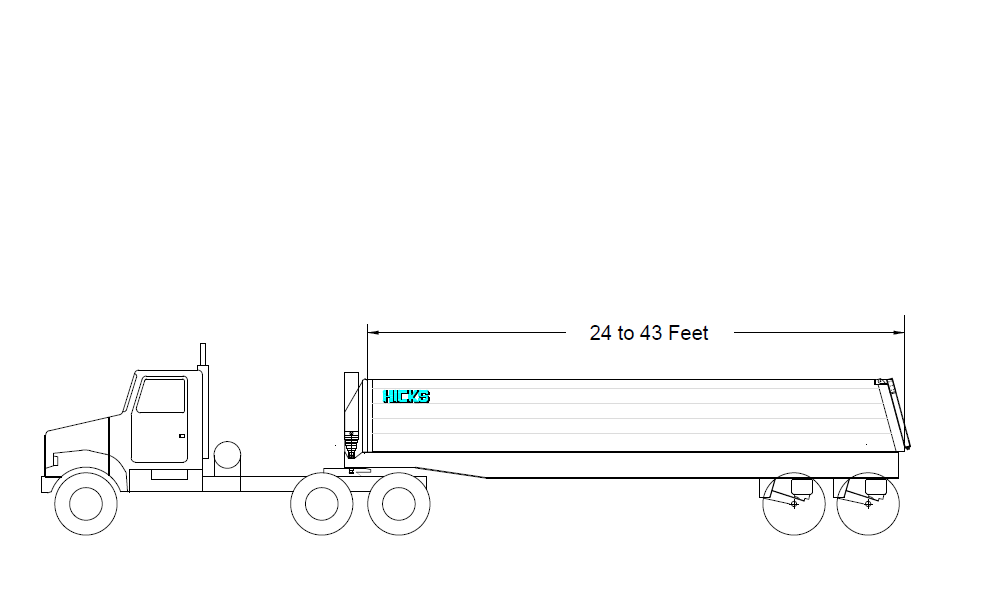

Frame Type Lengths

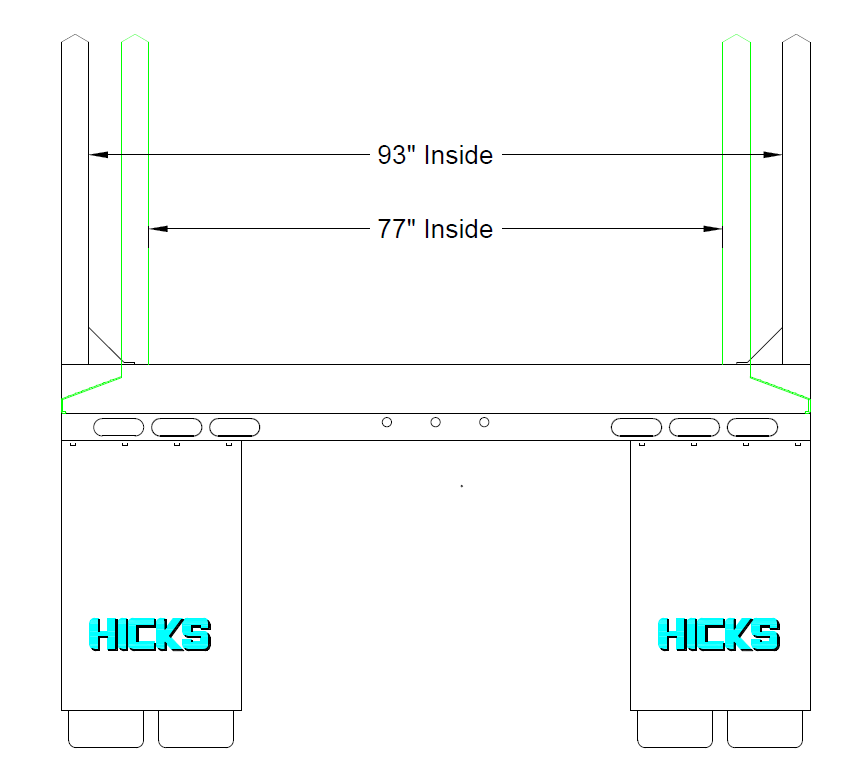

Frame Type and Frameless Widths

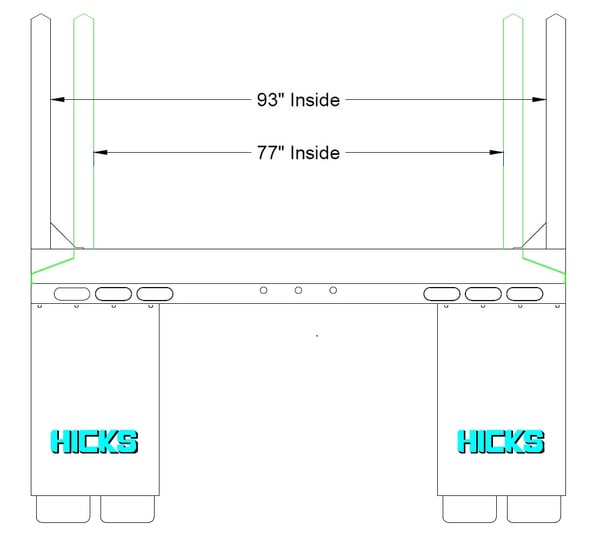

The Hicks Frame Type comes in the following widths:

Inside Width Outside Width
77 " 84 "
93 " 100 "

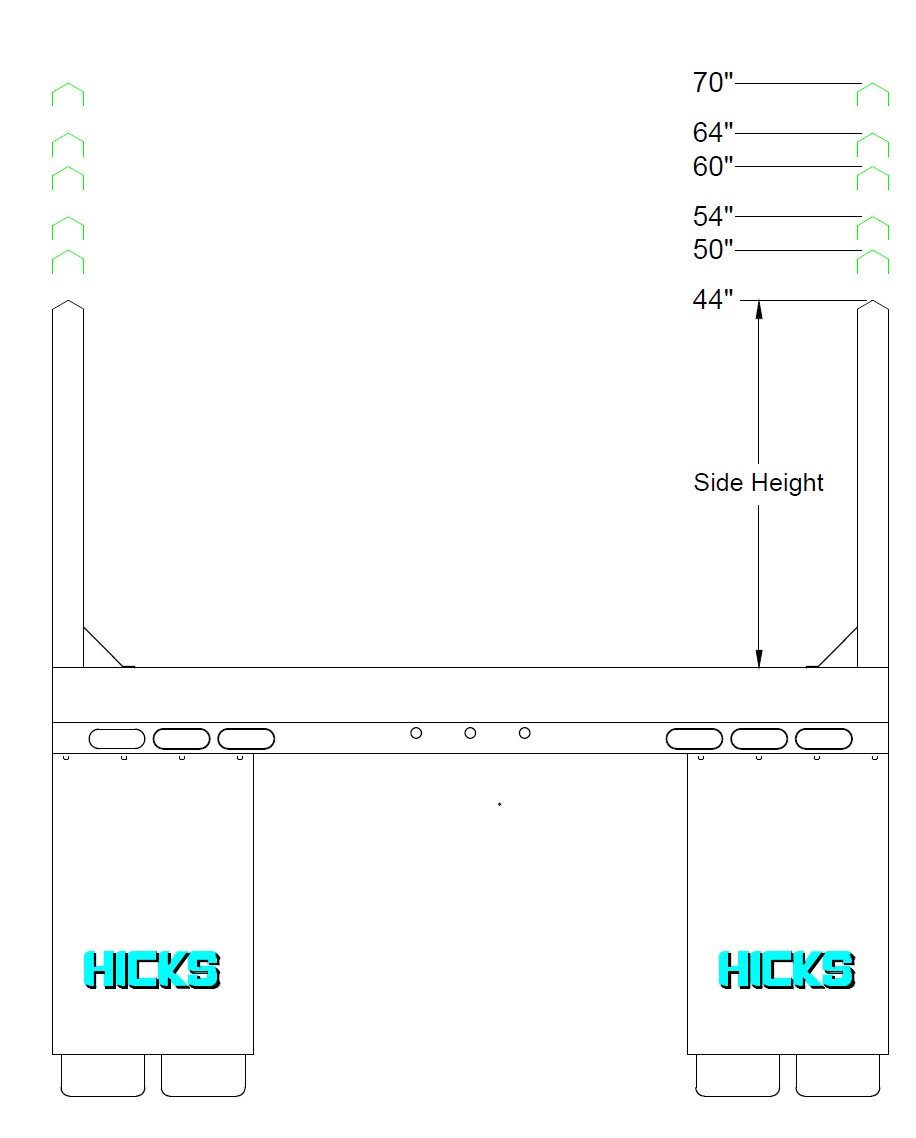

The Hicks Frame Type comes in the following side heights:



40 "    50 "    54 "    60 "

64 "    70 "    74 "    80 "    84 "

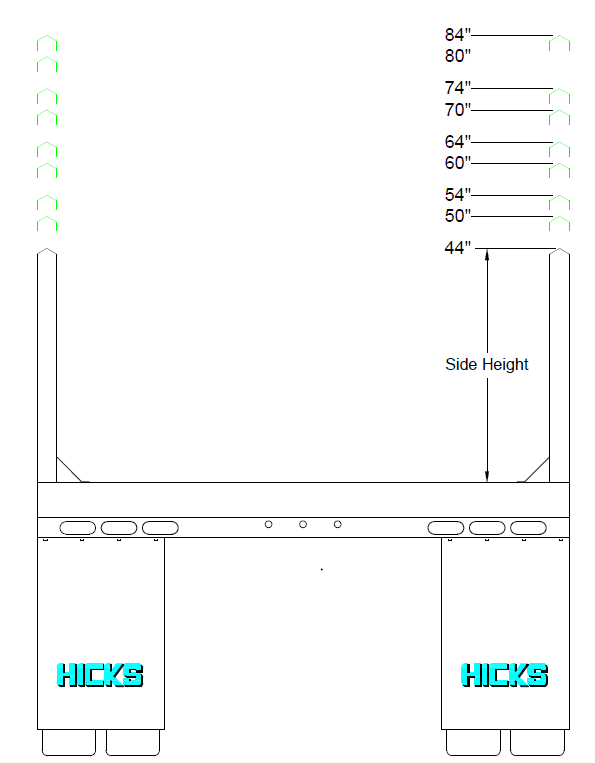

Frame Type and Frameless Body Heights



Hicks Aluminum End Dump Frame Type Auxillary Axle Illustration



The Hicks Frame Type has the following axle configurations:

Name Description
Tandem 2 x RAR266 (50k)

Tridem

3rd axle - 2 tires only

2 x RAR266 (50k)

1 x RAR266 (13k)
Tridem Light

2 x RAR266 (50k)

1 x RAR239 (5k)
Quad Light 2 x RAR266 (50k)
  2 x R239 (6k)



CLICK THE DROP DOWN ARROWS TO VIEW FEATURES.

Technical Specs

Key Features

Bolted Body with Superior Strength
Manual Lift Axle
Switch and Valve Cartridge
Ridewell RAR266 Suspension
LED Lights
Controls Run to the Cab
Kingpin Rollers
Lightweight Frame

Optional Features

UHMW Extra Wide Liner
UHMW Floor Liner
Automatic Lift Axle
Disc Brakes
Tire Inflation System
2-Speed Landing Gear
Grain Gate w/Screw Locks
Screw Locks
Full Flaps
Aluminum 22.5”
Aluminum 24.5”
Aluminum Super Single
Alcoa Dura-Bright 22.5”
Alcoa Dura-Bright 24.5”
Alcoa Dura-Bright Super Single
Galvanized Hangars
Aero Force Flip Tarp
Roll Rite Single Cable Slide Tarp
Roll Rite Electric Side Roll Tarp
Mountaintarp Manual Side Roll - Vinyl
Mountaintarp Tarp N Go - Mesh
Mountaintarp Tarp N Go - Vinyl
4- Way Electric Over Air Tailgate Control
6-Way Electric Over Air Tailgate Control
4-Way Electric Over Air Lift Axle Control
6- Way Electric Over Air Lift Axle Control
Ridewell RAR 266 Tri Axle
Ridewell 245R
Ridewell 239 Tri Axle
Ridewell 239 Quad Axle
Air-Lift Tailgate
Wide Spread Axles
Clearance Lights Rear Post
Extra Marker Lights Bottom of Sides
Extra Marker Lights Top of Sides
Air-Weigh LoadMaxx Plus
Air-Weigh Quickload Plus
Splash Guards
Inside Steps
Wood Boards - 6"
Push Blocks
Air Cab Kit
Document Holder
Spreader Chain on Tailgate
Rear Apron

Choose your configurations and complete this form. Our sales team will contact you for a quote.
