Tandem Axle

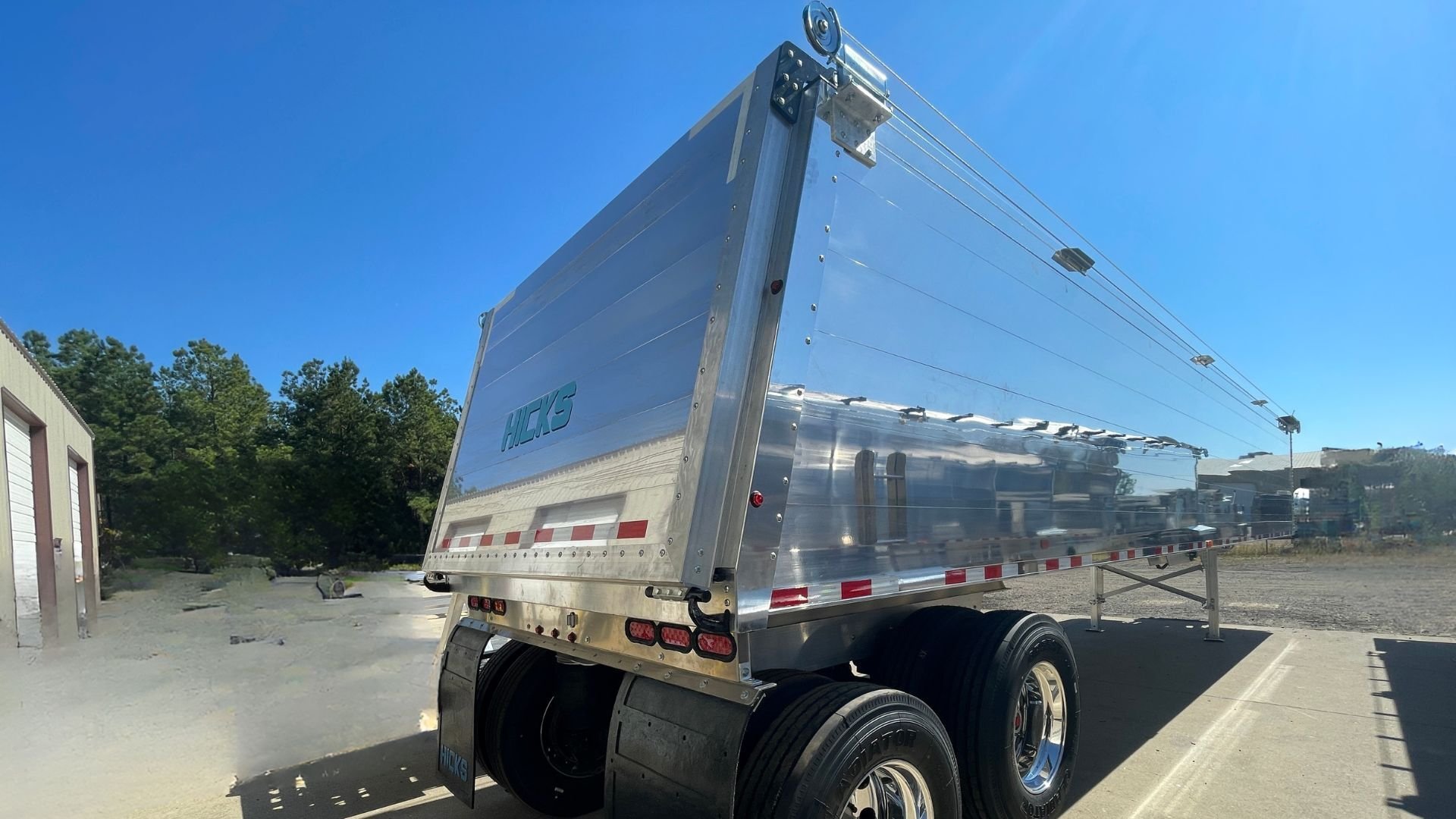

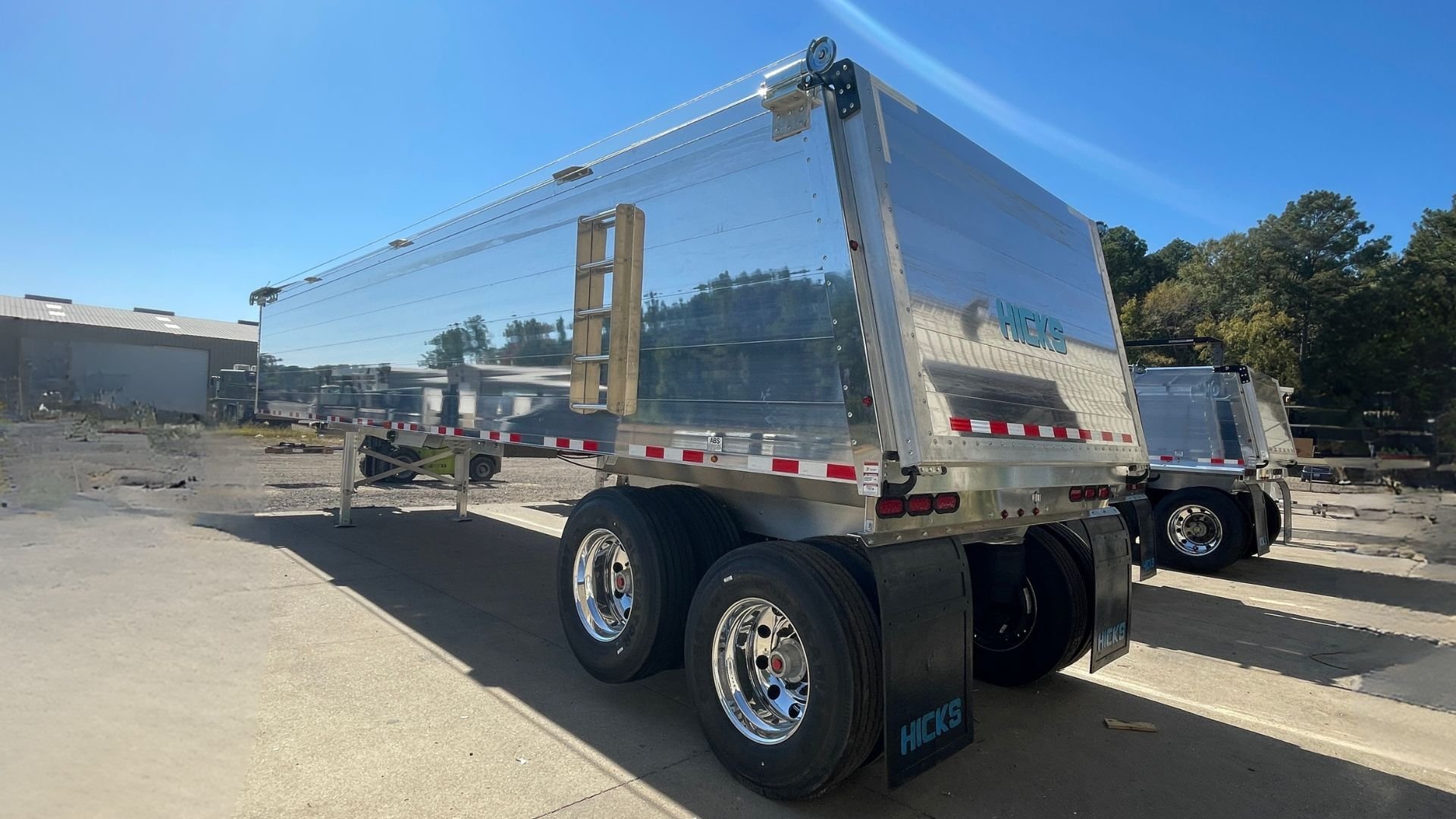

All-American Jack of All Trades 39-Ft

FL3952

Perfect for hauling a variety of material on federal highways in all 50 states. This frameless tandem axle trailer is a lightweight model. The patented design provides the highest yield strength in the industry. Its feature package provides the necessities most haulers need and is ready to maximize your payload.

  • Tare Weight10,429 lb
  • Capacity52 Yards
  • Body TypeFL3952

SELECT AND CLICK TO ADD YOUR OPTIONAL FEATURES. SCROLL DOWN TO REVIEW.

Optional Features

Technical Specs

Key Features

Bolted Body with Superior Strength
Manual Lift Axle
Switch and Valve Cartridge
Ridewell RAR266 Suspension
Aluminum Wheels
Aluminum Stiff Legs
LED Lights
Controls Run to the Cab
Kingpin Rollers
Trapezoidal Member Subframe
Rotating Tailgate Lock Pin
Extra Stop Tail Turn (STT) Lights

Dimensions

Body Type
FL3952
Capacity
52 Yards
Inside Width
93"
Inside Length
36' 8"
Side Height
60"
Nose Height
60"
Tailgate Height
60"
TG Slope
15 Degrees
Kingpin to Rear Axle
426"
Kingpin Setting
-7.5"
Draft Arms
204"
Kingpin to Stiff Legs
102"
Suspension
Ridewell RAR266
Axle
77.5” Track, 5.75 Dia, .394”Wall
Wheel Size
8.25x24.5
Tire Size
11R24.5
Hoist Size
8” Trunnion Mount
Tare Weight
10,429 lb
