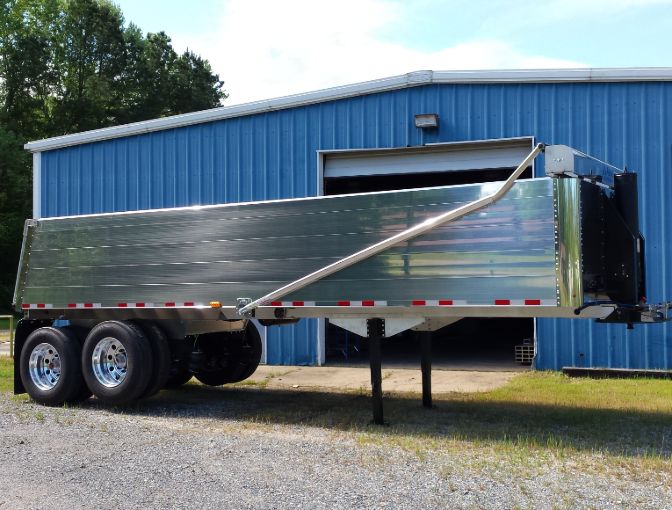

  • T6 Workhorse 28-Ft trailer curbside

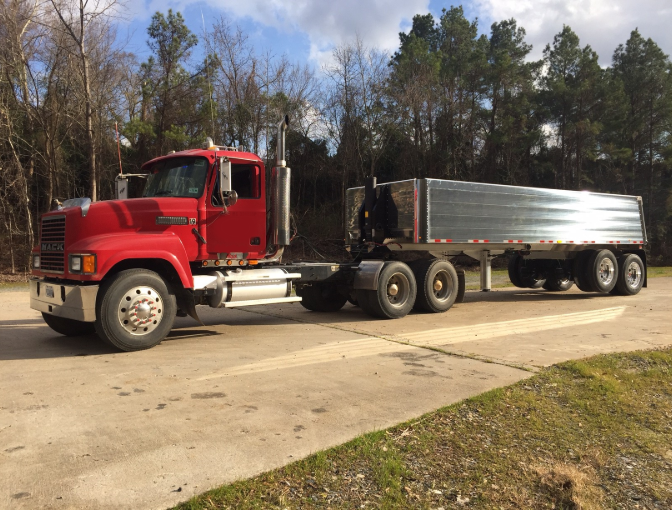

  • T6 Workhorse 28-Ft trailer driver side with tractor

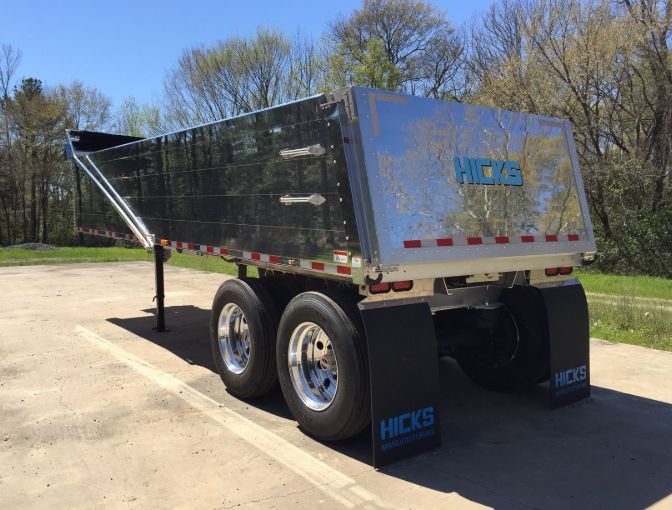

  • T6 Workhorse 28-Ft trailer rear driver side

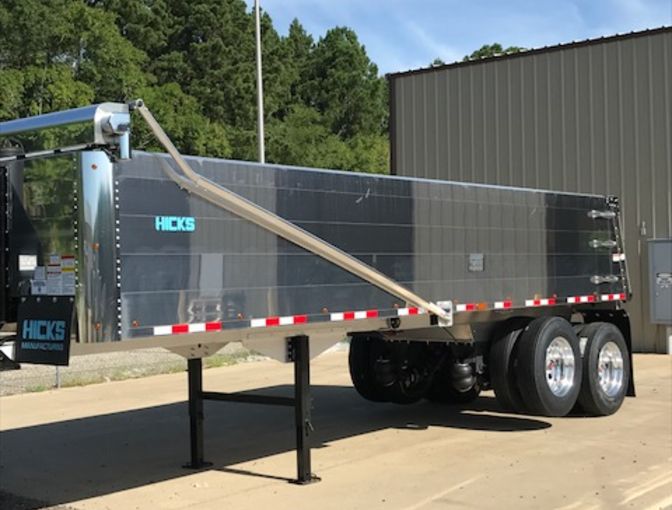

  • T6 Workhorse 28-Ft trailer front curbside with steel landing legs
  • T6 Workhorse 28-Ft trailer front driver side with steel landing legs
  • T6 Workhorse 28-Ft trailer rear
  • T6 Workhorse 28-Ft trailer front driver side
  • T6 Workhorse 28-Ft trailer raised driver side
  • T6 Workhorse 28-Ft trailer raised curbside
  • T6 Workhorse 28-Ft trailer with two speed landing gear
  • T6 Workhorse 28-Ft trailer rear
  • T6 Workhorse 28-Ft trailer fleet



  • T6 Workhorse 28-Ft trailer curbside
  • T6 Workhorse 28-Ft trailer driver side with tractor
  • T6 Workhorse 28-Ft trailer rear driver side
  • T6 Workhorse 28-Ft trailer front curbside with steel landing legs
  • T6 Workhorse 28-Ft trailer front driver side with steel landing legs
  • T6 Workhorse 28-Ft trailer rear
  • T6 Workhorse 28-Ft trailer front driver side
  • T6 Workhorse 28-Ft trailer raised driver side
  • T6 Workhorse 28-Ft trailer raised curbside
  • T6 Workhorse 28-Ft trailer with two speed landing gear
  • T6 Workhorse 28-Ft trailer rear
  • T6 Workhorse 28-Ft trailer fleet



Tandem Axle

Workhorse 28-Ft

FL2827

The ultimate trailer for loading up and hauling on local roads. This frameless tandem axle is a featherweight model. The patented design provides the highest yield strength in the industry. Its feature package provides the necessities most haulers need and is ready to maximize your payload.

  • Tare Weight8,330 lb
  • Capacity27 Yards
  • Body TypeFL2827
View all technical specs

Get a Quote Now

CLICK THE DROP DOWN ARROWS TO VIEW FEATURES.

Technical Specs

Key Features

Bolted Body with Superior Strength
Manual Lift Axle
Switch and Valve Cartridge
Ridewell RAR266 Suspension
Ridewell 239 Quad Axle
Aluminum Wheels
Aluminum Stiff Legs
LED Lights
Controls Run to the Cab
Kingpin Rollers
Trapezoidal Member Subframe

Optional Features

UHMW Extra Wide Liner
UHMW Floor Liner
Automatic Lift Axle
Disc Brakes
Tire Inflation System
2-Speed Landing Gear
Grain Gate w/Screw Locks
Screw Locks
Full Flaps
Aluminum 22.5”
Aluminum 24.5”
Aluminum Super Single
Alcoa Dura-Bright 22.5”
Alcoa Dura-Bright 24.5”
Alcoa Dura-Bright Super Single
Galvanized Hangars
Aero Force Flip Tarp
Roll Rite Single Cable Slide Tarp
Roll Rite Electric Side Roll Tarp
Mountaintarp Manual Side Roll - Vinyl
Mountaintarp Tarp N Go - Mesh
Mountaintarp Tarp N Go - Vinyl
4- Way Electric Over Air Tailgate Control
6-Way Electric Over Air Tailgate Control
4-Way Electric Over Air Lift Axle Control
6- Way Electric Over Air Lift Axle Control
Ridewell RAR 266 Tri Axle
Ridewell 245R
Ridewell 239 Tri Axle
Ridewell 239 Quad Axle
Air-Lift Tailgate
Wide Spread Axles
Clearance Lights Rear Post
Extra Marker Lights Bottom of Sides
Extra Marker Lights Top of Sides
Air-Weigh LoadMaxx Plus
Air-Weigh Quickload Plus
Splash Guards
Inside Steps
Wood Boards - 6"
Push Blocks
Air Cab Kit
Document Holder
Spreader Chain on Tailgate

Dimensions

Body Type
FL2827
Capacity
27 Yards
Inside Width
93"
Inside Length
26'
Side Height
44"
Nose Height
44"
Tailgate Height
44"
TG Slope
15 Degrees
Kingpin to Rear Axle
298"
Kingpin Setting
-7.5"
Draft Arms
140"
Kingpin to Stiff Legs
108"
Suspension
Ridewell RAR266
Axle
77.5” Track, 5.75 Dia, .394”Wall
Wheel Size
8.25x24.5
Tire Size
11R24.5
Hoist Size
8” Trunnion Mount
Tare Weight
8,330 lb
